Summary
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 11,500 BTU/H with 8.3 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

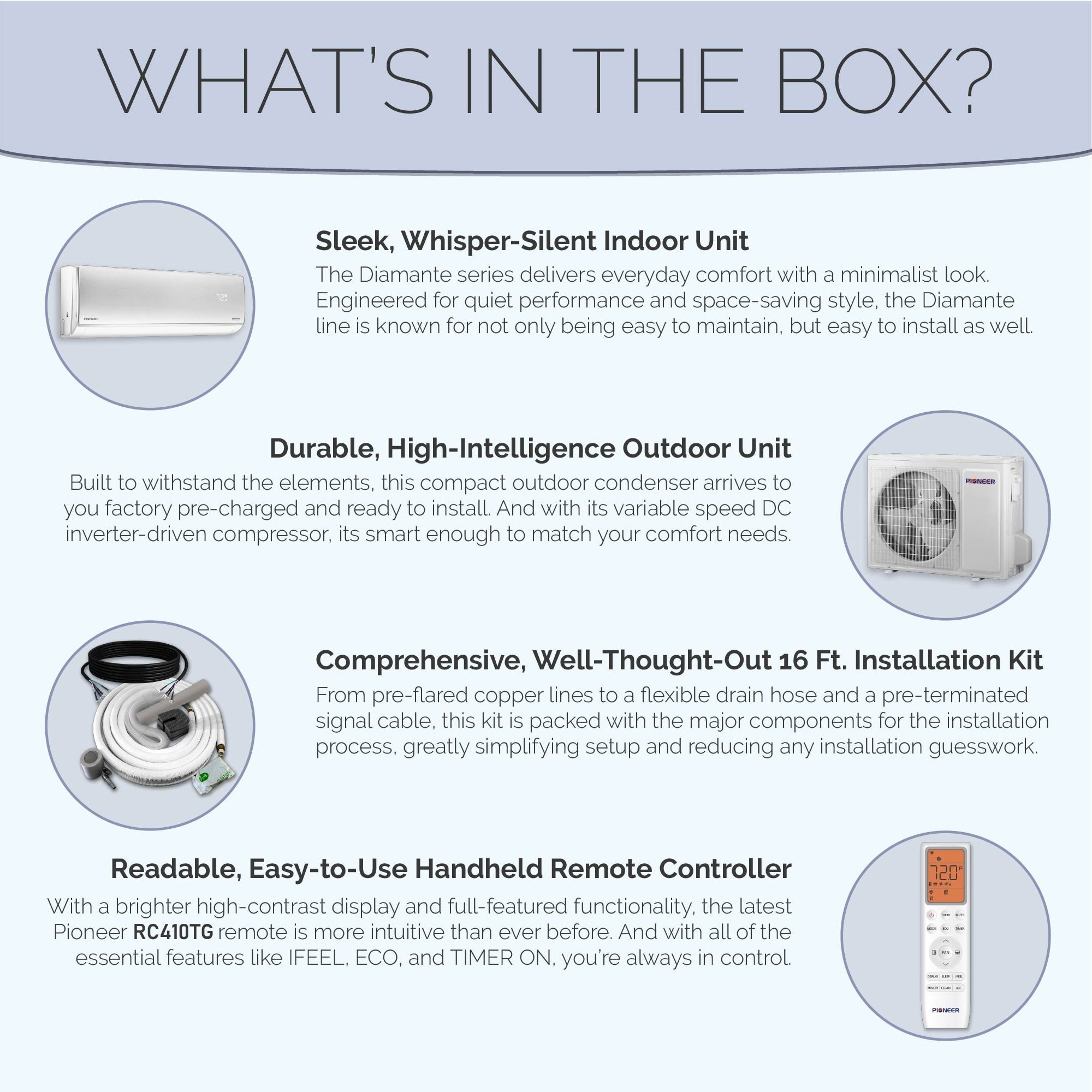

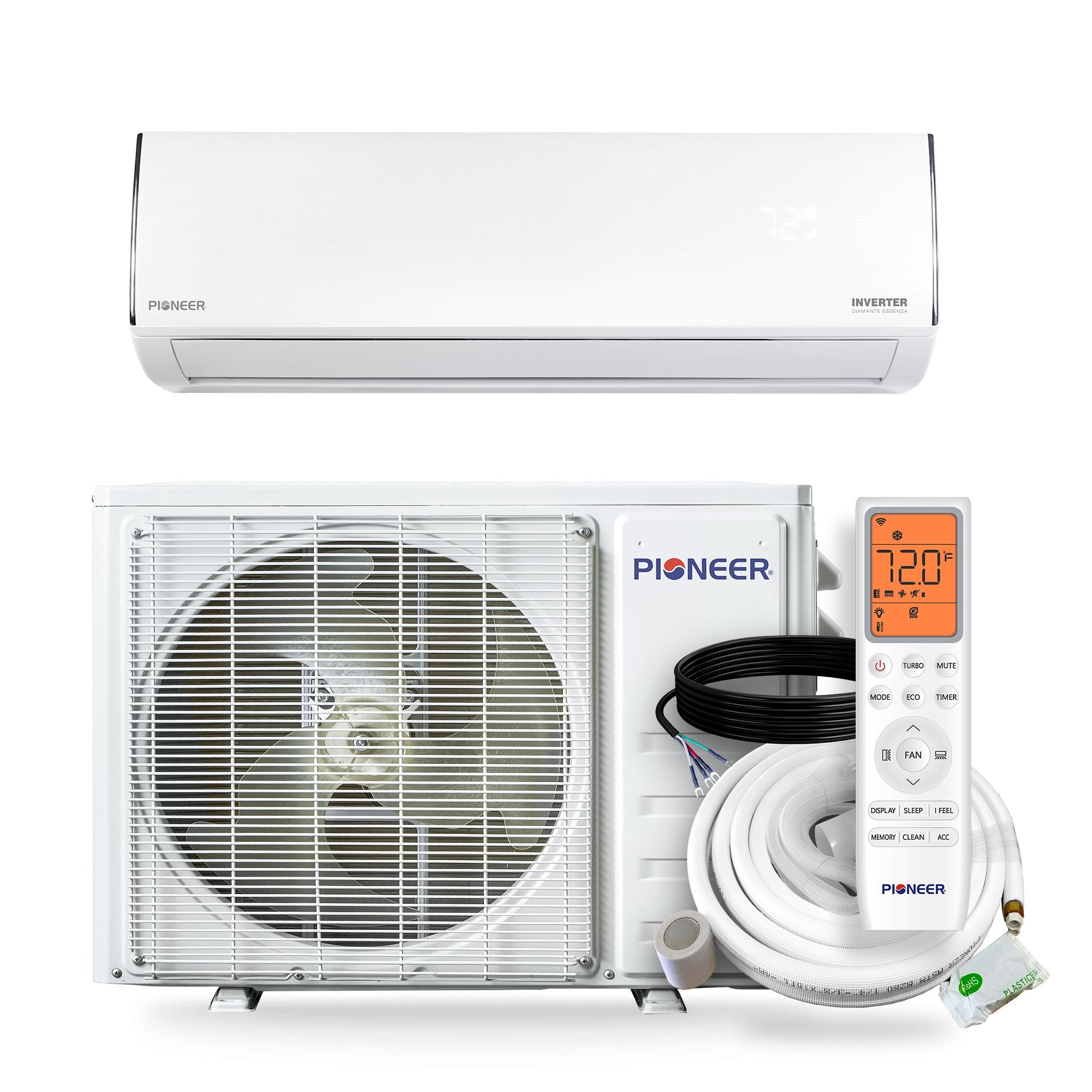

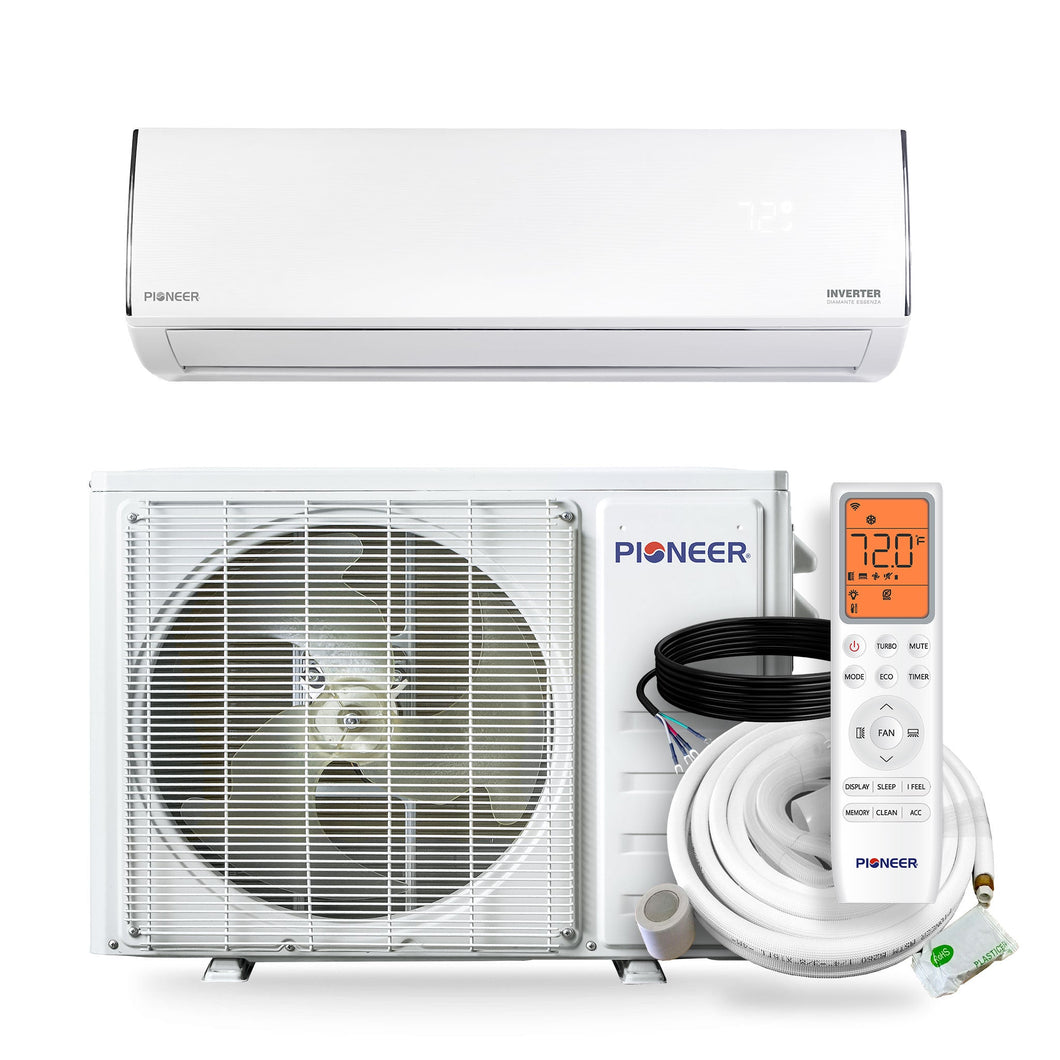

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 11,500 BTU/h
- Cooling Capacity Range: 2,050~12,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 11,500 BTU/h
- Heating Capacity Range: 2,050~12,500 BTU/h
- Heating HSPF2 (Region IV): 8.3 / 7.1 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.75 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 200~450 sq ft
- Minimum Room Size: 20 sq ft
- Minimum Installation Height: 6 ft

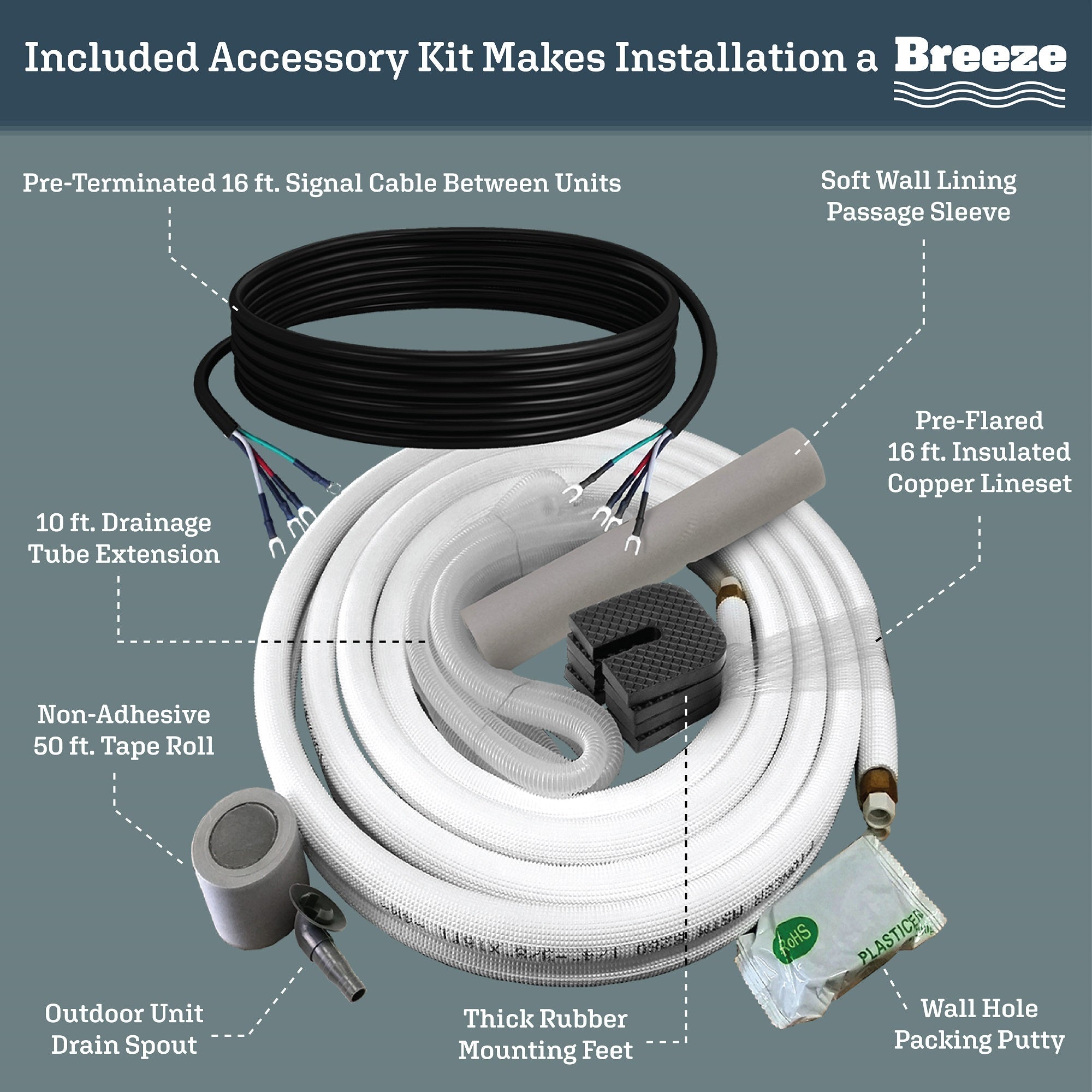

- Piping Diameter: 1/4-3/8"
- AHRI Reference: 217048735
-
Indoor Unit
- Part Number: WT012GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 294 / 264 / 235 / 206 / 159 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 42 / 39 / 35 / 33 dB(A)
- Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
- Carton Dimensions (WDH): 33-1/8 x 10-1/4 x 12-3/8 Inches
- Net / Gross Weight: 16.5 / 20.9 lbs
-

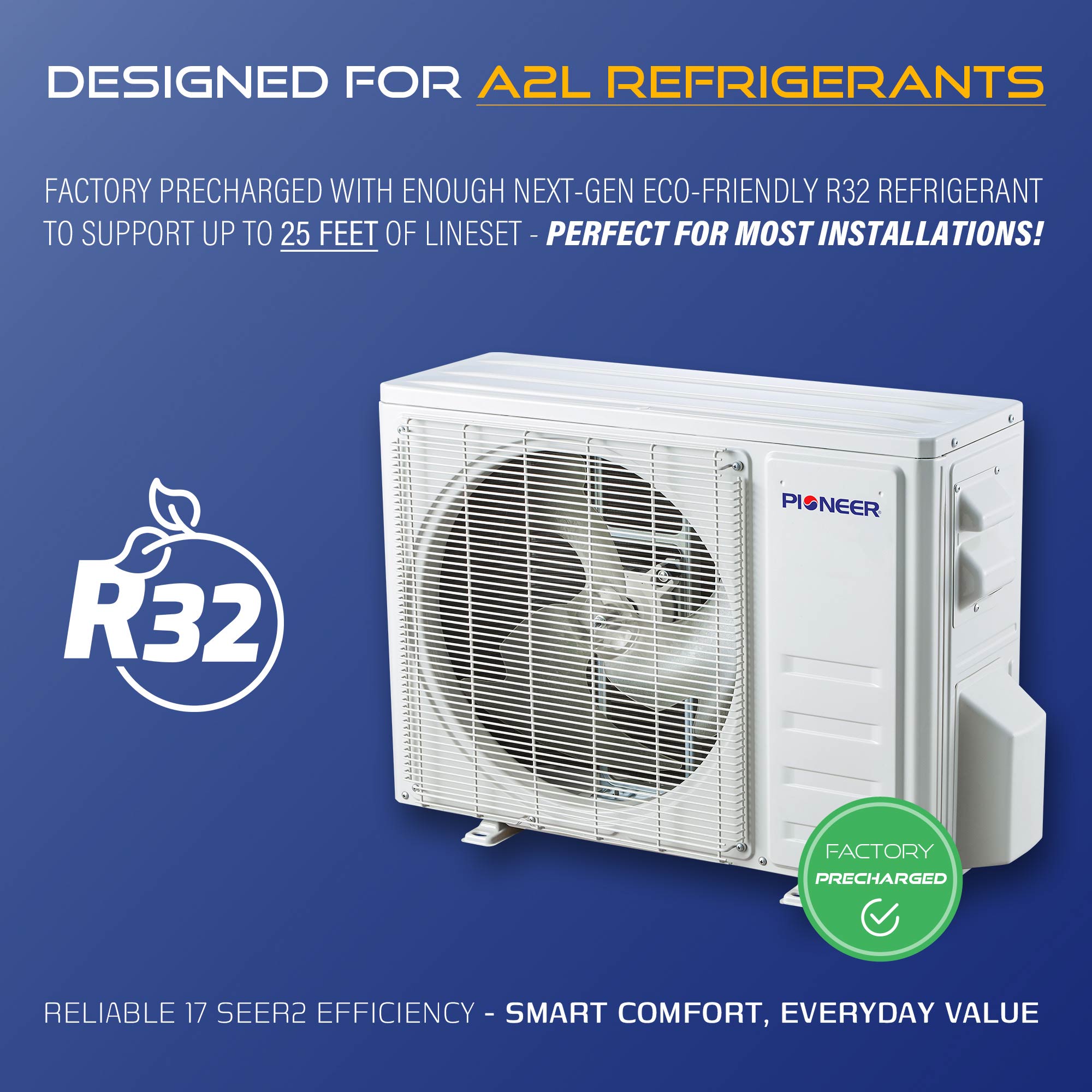

Outdoor Unit
- Part Number: YN012GLUI17RPD
- Breaker Needed: 15A (double-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
- Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
- Net / Gross Weight: 50.7 / 61.7 lbs
