Portable AC Vent Kit for 6" Exhaust Hose

Features

Universal Coupler

Fits both clockwise and counterclockwise threaded hoses.

Durable PVC Material

Waterproof, UV-resistant material.

Extra-Thick Seal Tape

Prevent outside air from leaking into the room.

Installation Steps

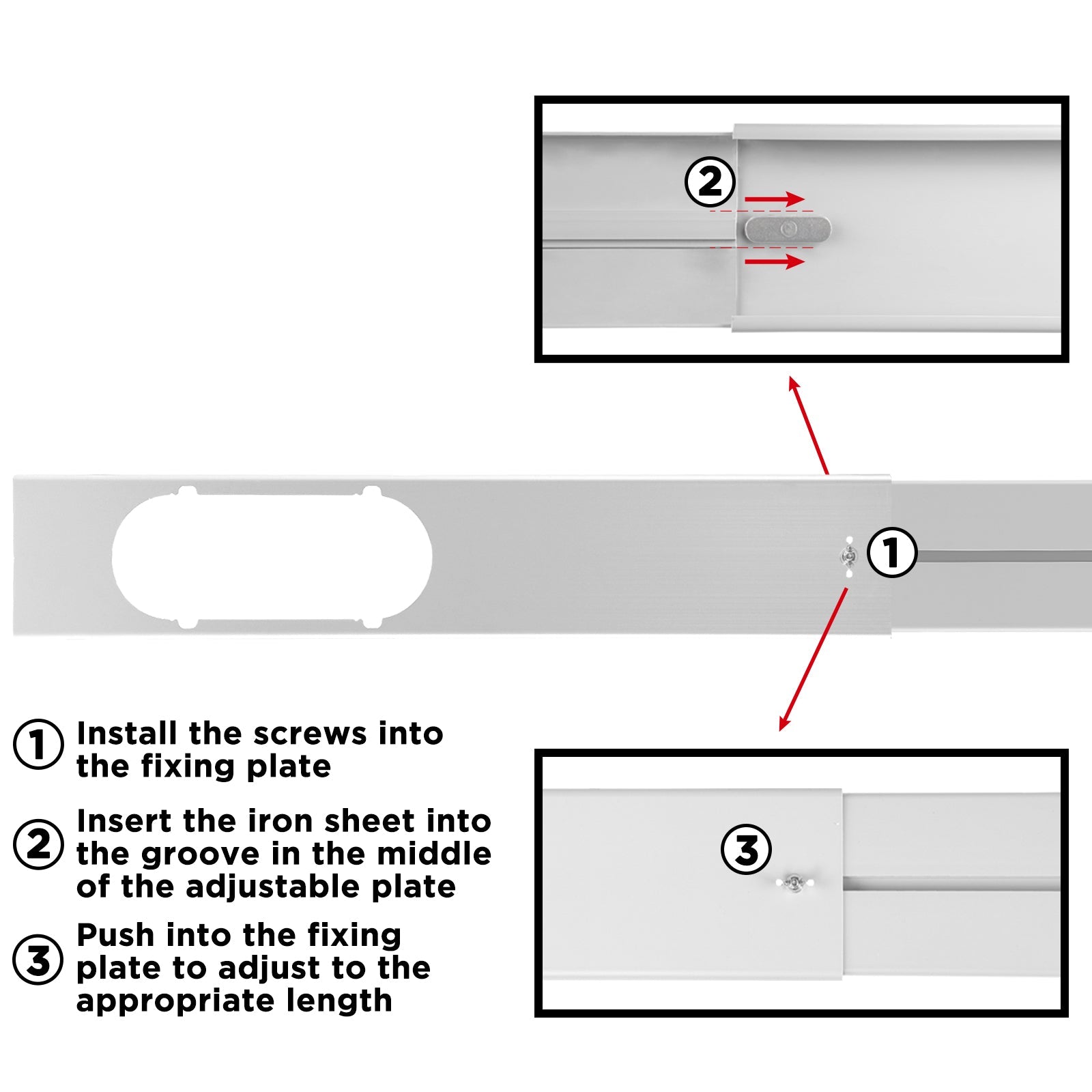

Step 1

Install the screw and nut on the fixed plate and tighten (do not tight completely.) install the fixed plate to the adjustable plate by sliding the screw kit into the groove of the adjustable plate.

Step 2

Install the hose on the coupler, then attach the coupler to the plates. Match the coupler with the end of the plate and snap it into place.

Note: The exhaust hose is not included with this item.

Step 3

Attach the exhaust hose to the coupler on the portable air conditioner.

Step 4

Adjust the length of the window and insert it into place. After installing the plate kit, use the included tape to seal the gap between the window and the adjustable plate.

Kind Reminder:

• Please check your hose outer diameter and make sure it is 5.9 inches, not 6 inches, before you purchase.

Specification:

• Model: V5515
• Flexible Length:11 - 61 Inches
• Suitable For Exhaust Hose: 5.9 Inch Clockwise/ Anti-Clockwise Exhaust Hose
• Applicable Models: LG / Shinco / Gree / TOSOT / TURBRO / Aux / Haier /Honeywell/Black Decker /LG, etc.
• Size (L x W x H): 24.41 * 15.75 * 3.94 inches
• Weight: 1.33 lbs.

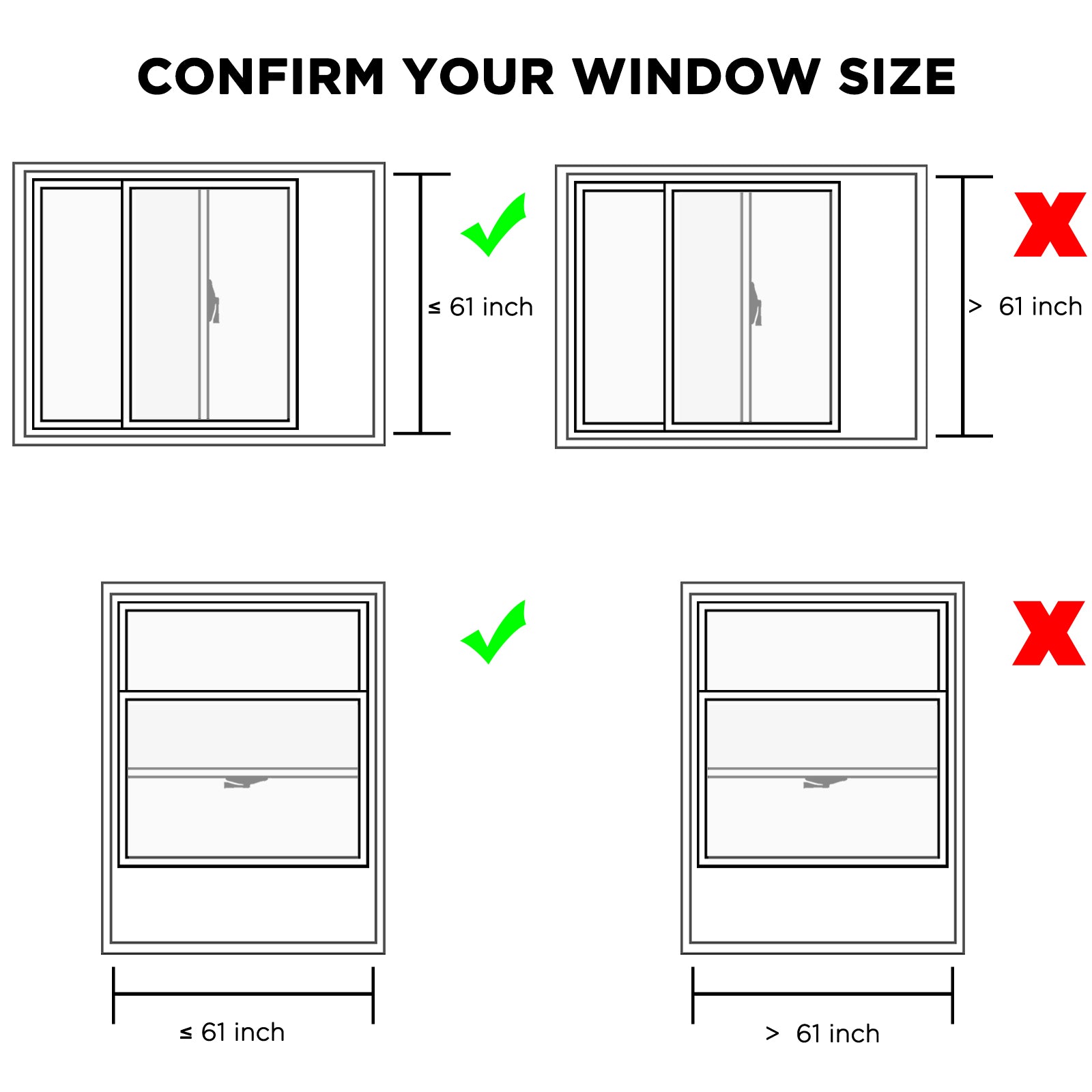

Window Requirements:

1. Horizontal Window (Wide less than 61 Inches)
2. Vertical Window (Length less than 61 Inches)

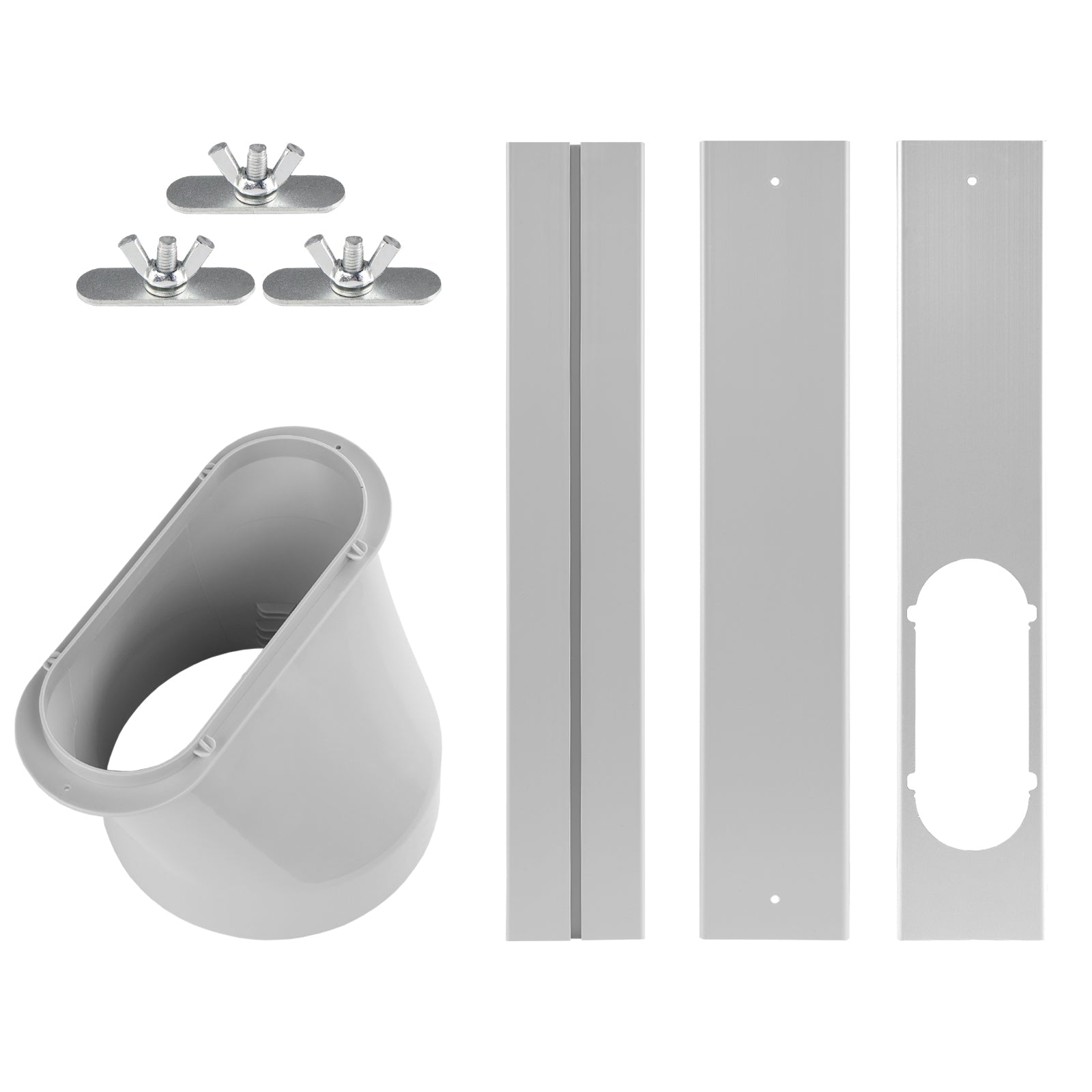

Package Includes:

• 2 x 21.65 Inch Fixed Plate
• 1 x 55 c Inch Adjustable Plate
• 1 x Exhaust Hose Adapter
• 1 x Sealing Tape
• 3 x Screw Kit
