Summary

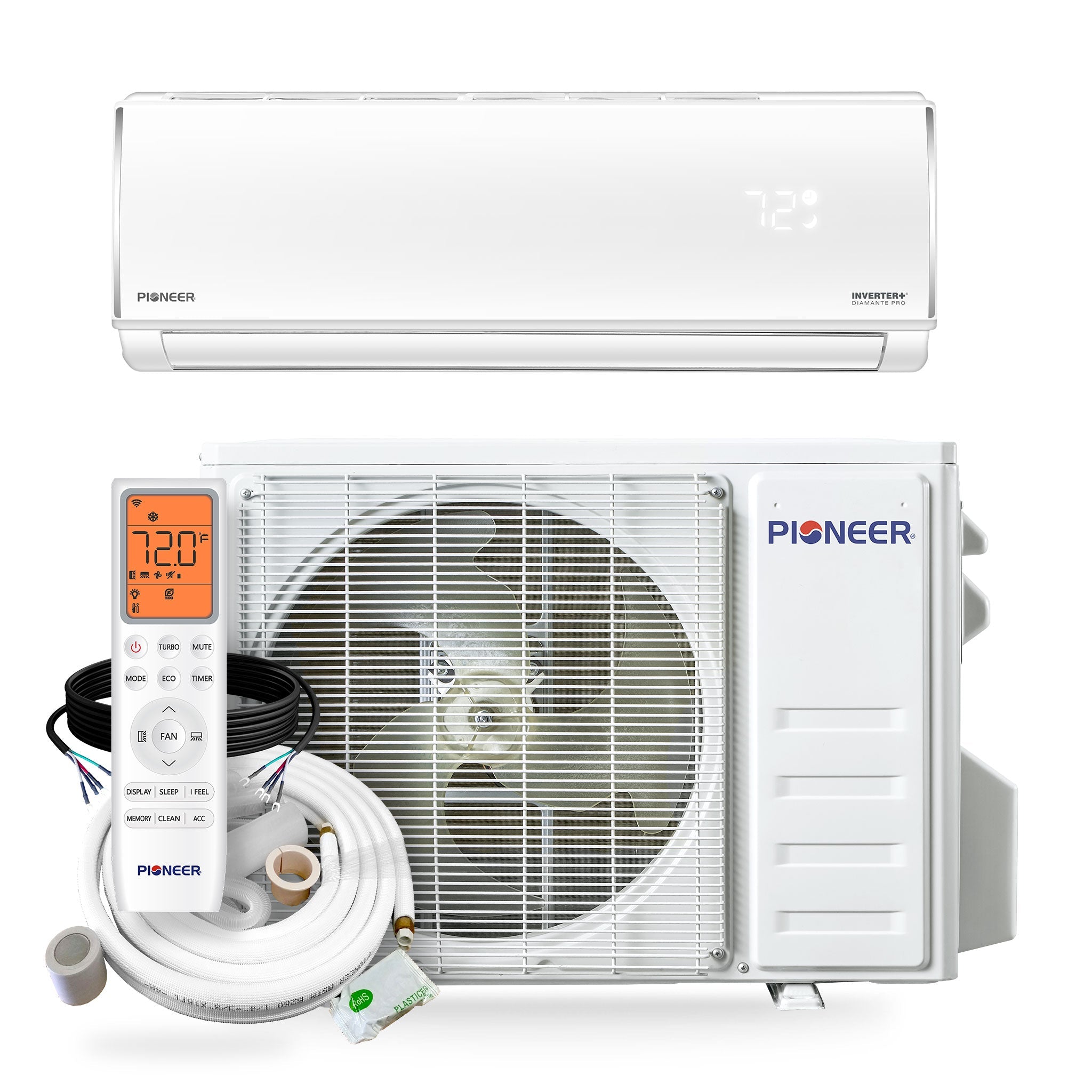

- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 20 SEER2 / 12 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

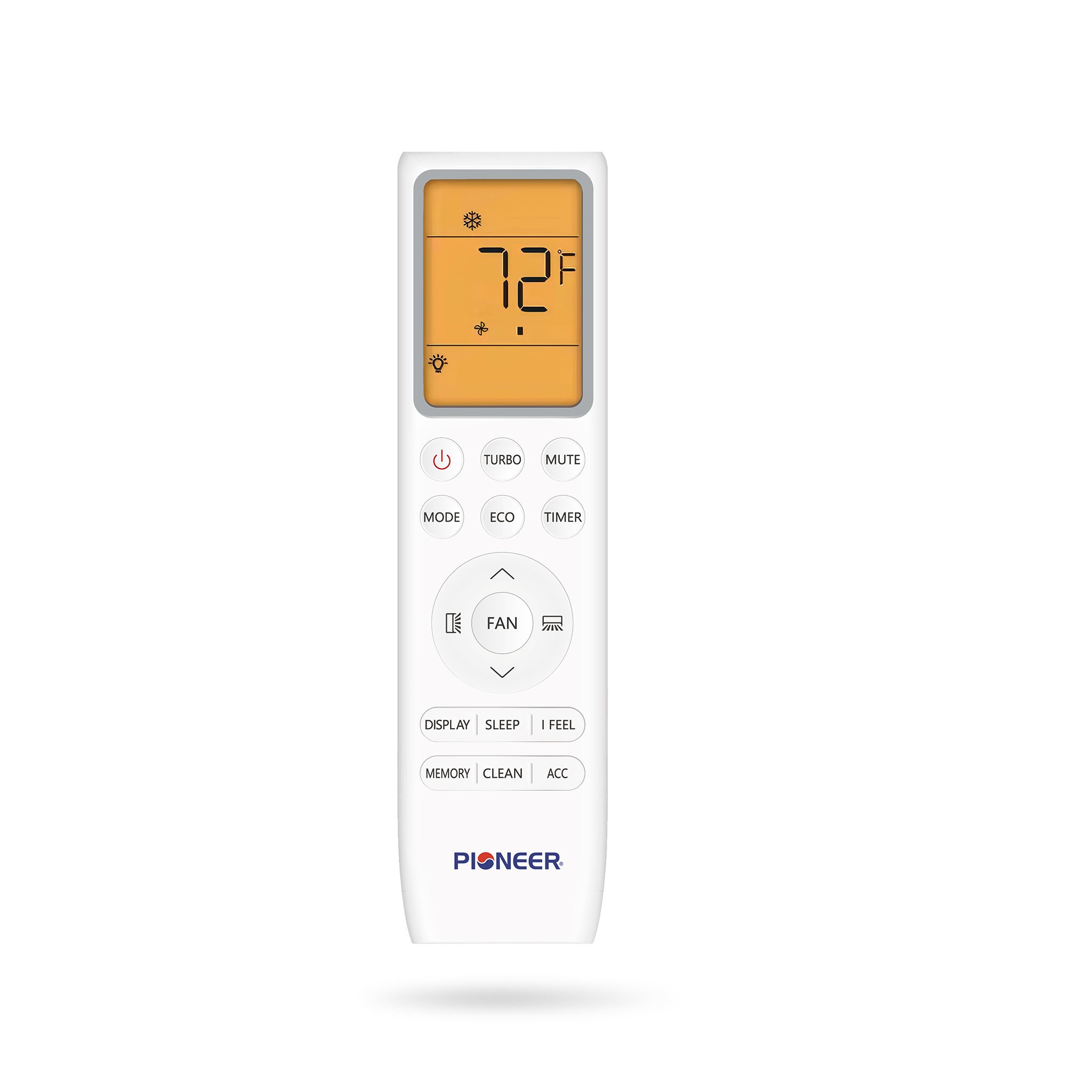

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,050 ~ 10,900 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 12.0 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,050 ~ 12,200 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 100~350 sq ft
- Minimum Room Size: 26 sq ft
- Minimum Installation Height: 6 ft

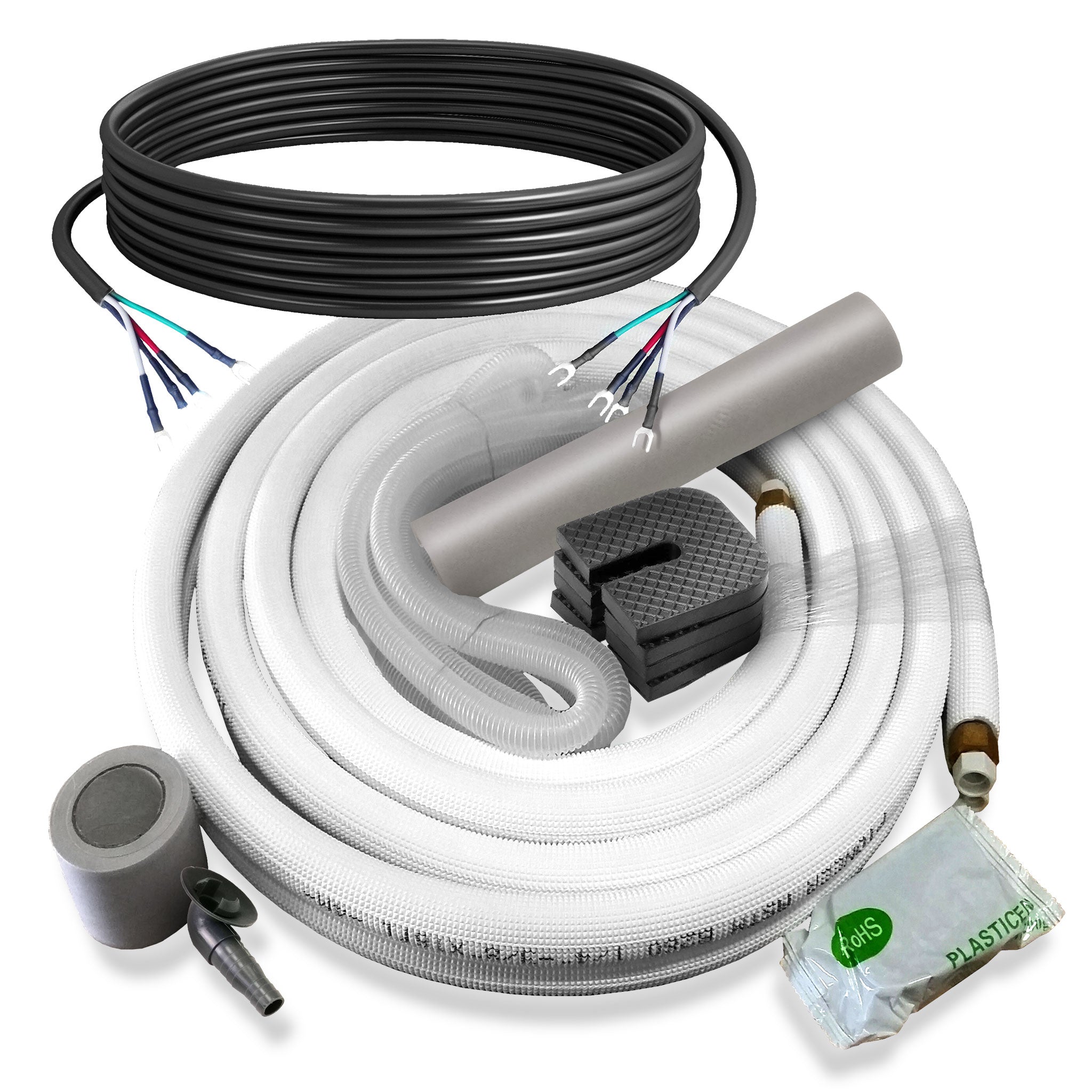

- Piping Diameter: 1/4 x 3/8"
- AHRI Reference: 217048741
-

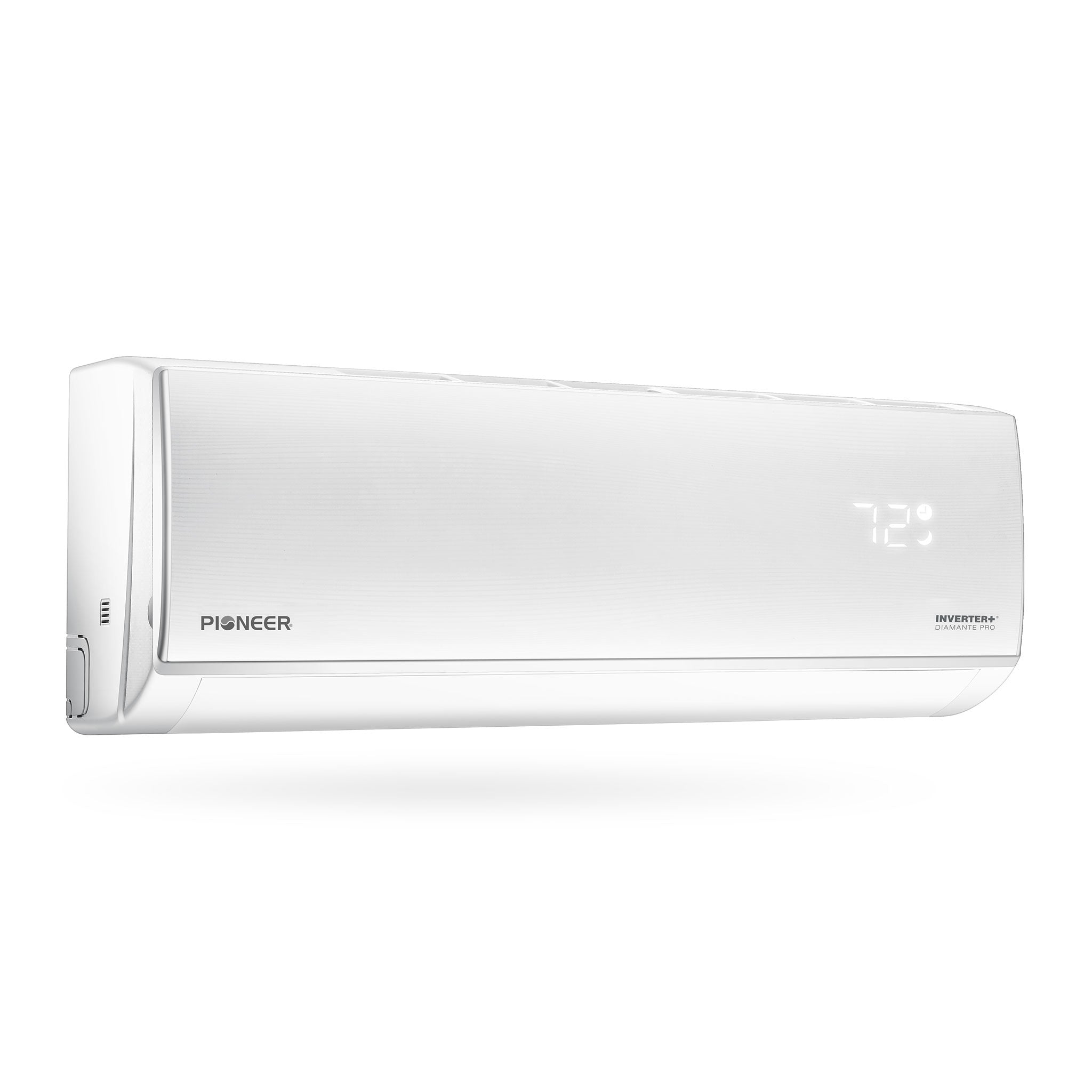

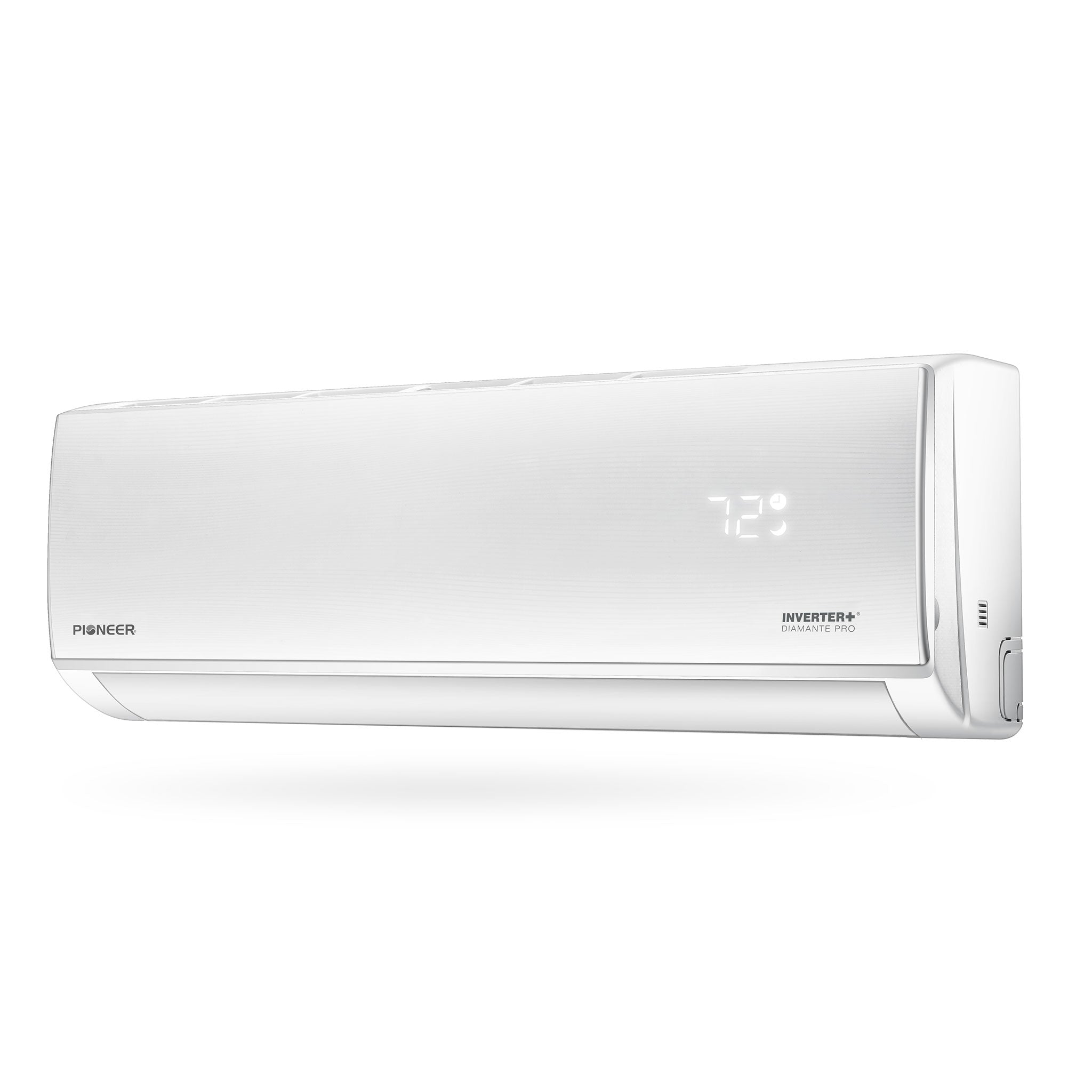

Indoor Unit
- Part Number: WT009GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 342 / 270 / 235 / 200 / 152 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 36 / 31 / 29 dB(A)
- Product Dimensions (WDH): 31"-7/8 x 8" x 11"-1/2 Inches
- Carton Dimensions (WDH): 34"-7/8 x 10"-3/4 x 14"-3/8 Inches
- Net / Gross Weight: 19.8 / 26.5 lbs.
-

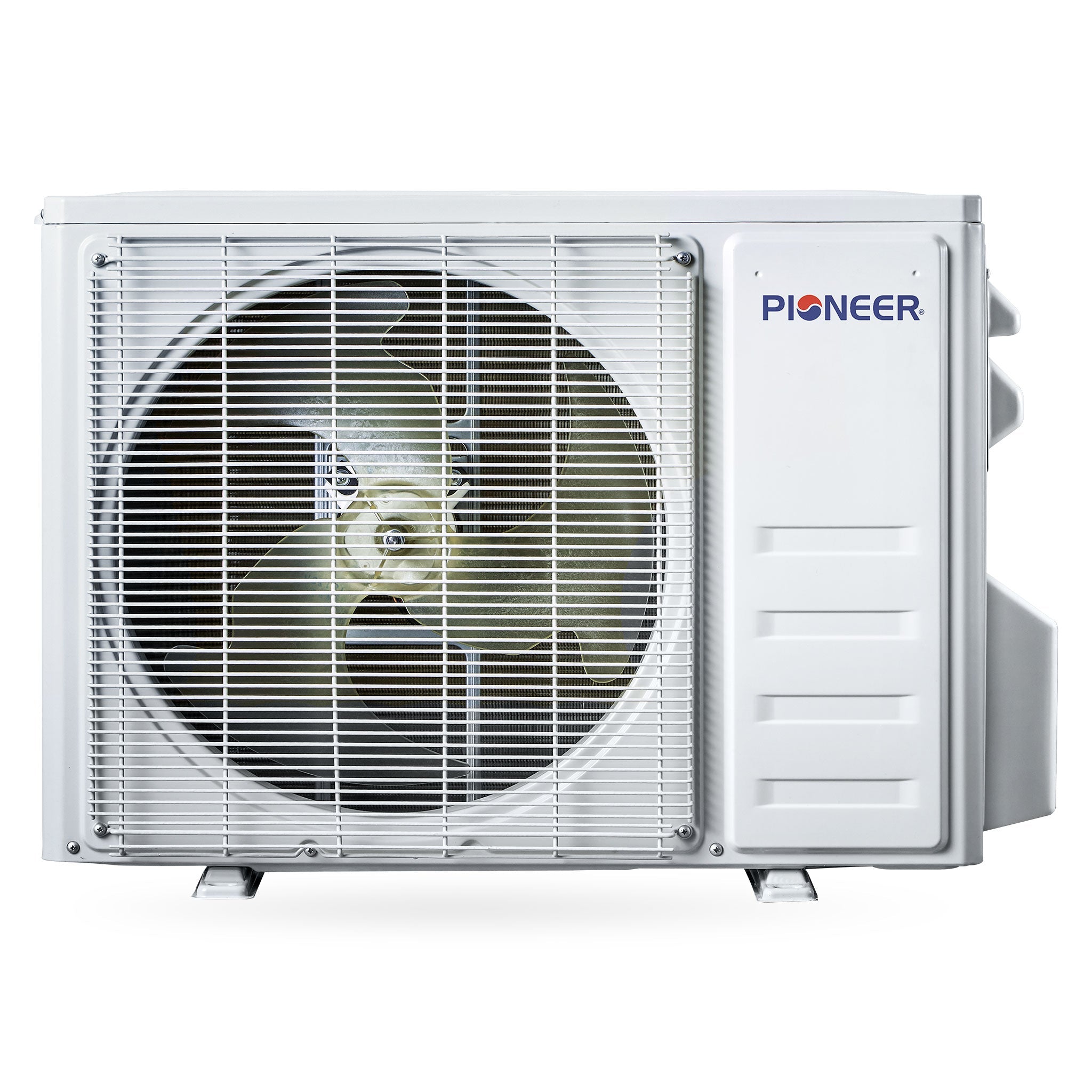

Outdoor Unit
- Part Number: YN009GLSI20RPF
- Breaker Needed: 15A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 31" x 11"-1/2 x 19"-3/8 Inches
- Carton Dimensions (WDH): 33" x 13"-3/8 x 22"-3/4 Inches
- Net / Gross Weight: 48.5 / 59.5 lbs.
