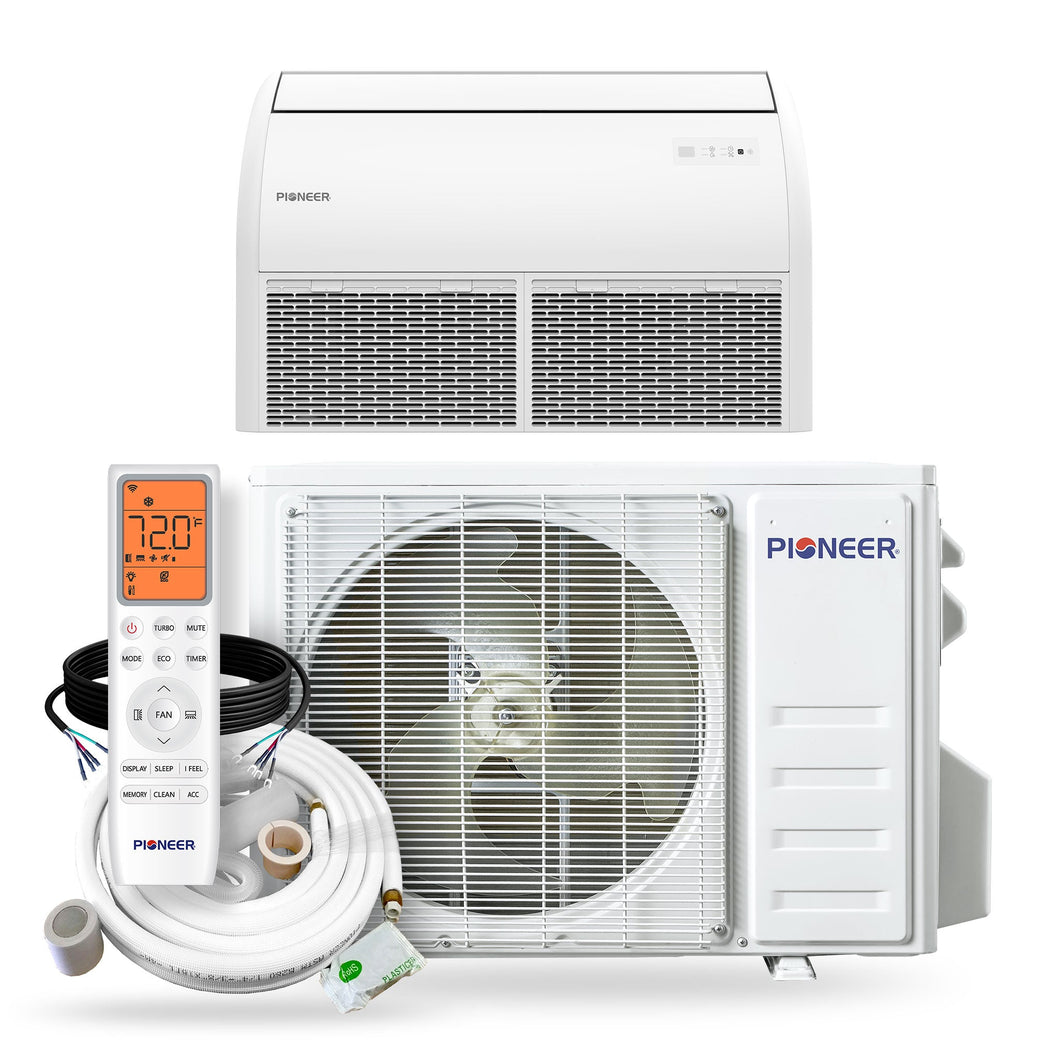

Pioneer® Quantum Ultra™ 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
• Cooling capacity: 22,200 BTU/H with 20.0 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

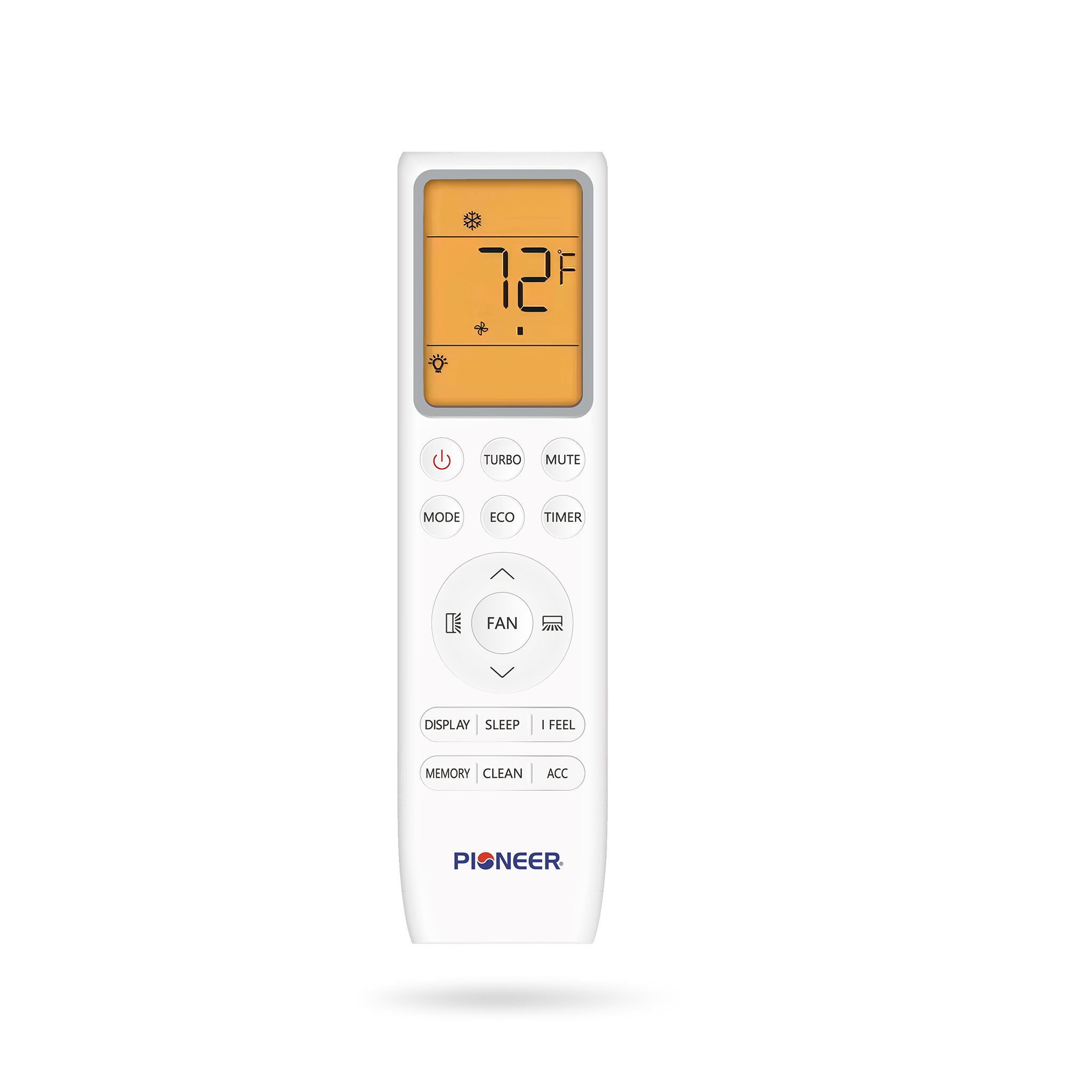

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

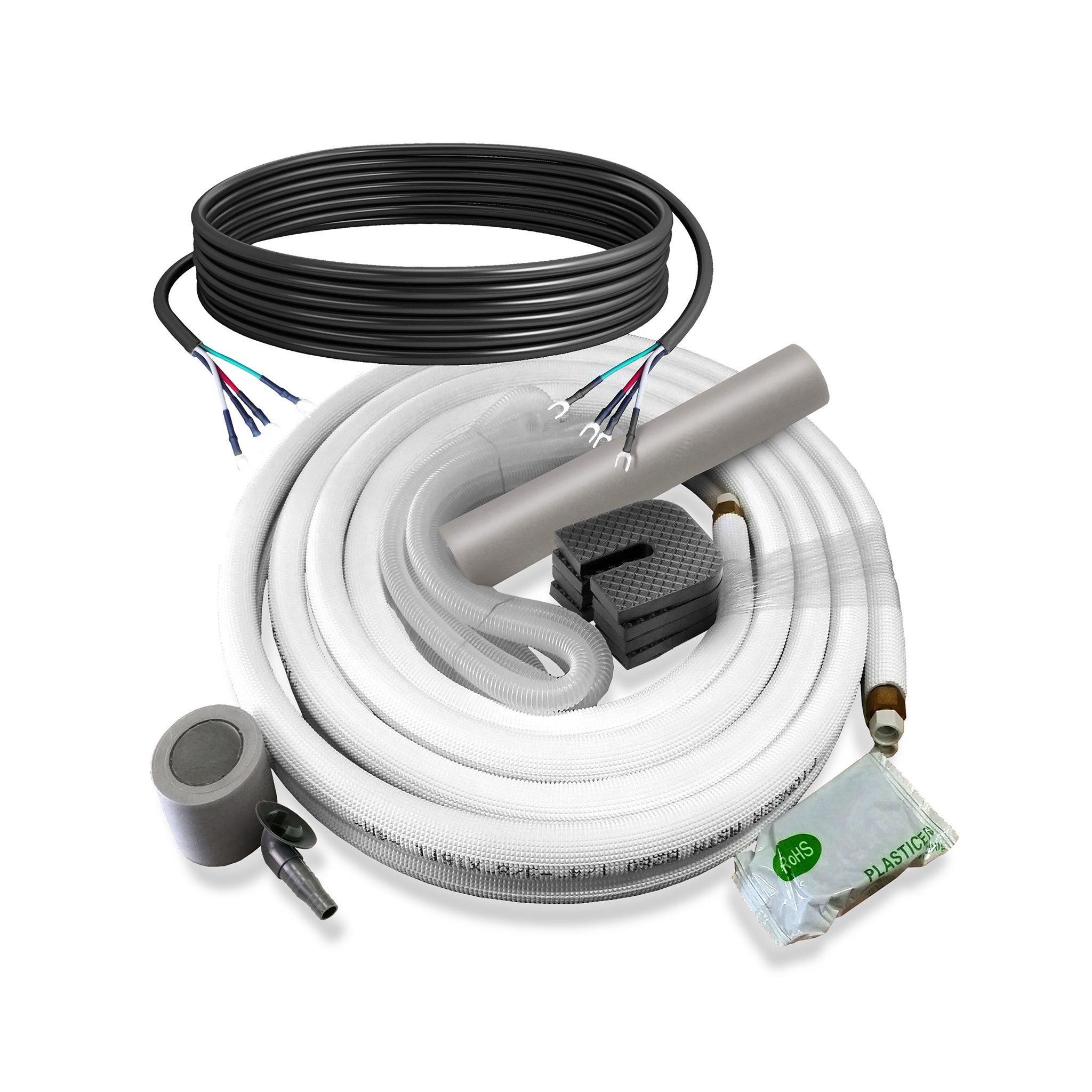

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 22,200 BTU/h
  • Cooling Capacity Range: 6,010~24,610 BTU/h
  • Cooling SEER2: 20.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 24,400 BTU/h
  • Heating Capacity Range: 4,750~28,640 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 750~1,000 Sq.F
  • AHRI Reference: 217048767

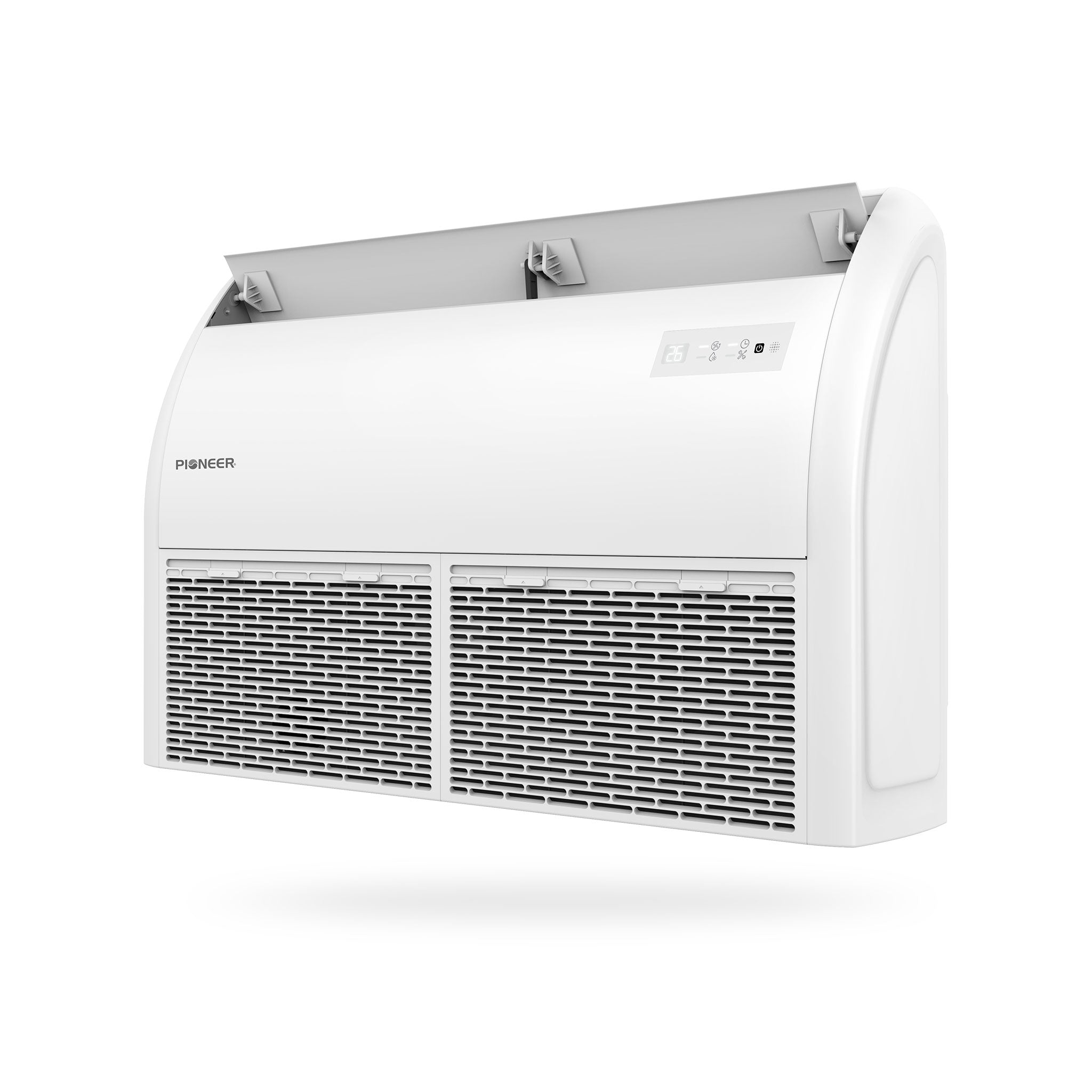

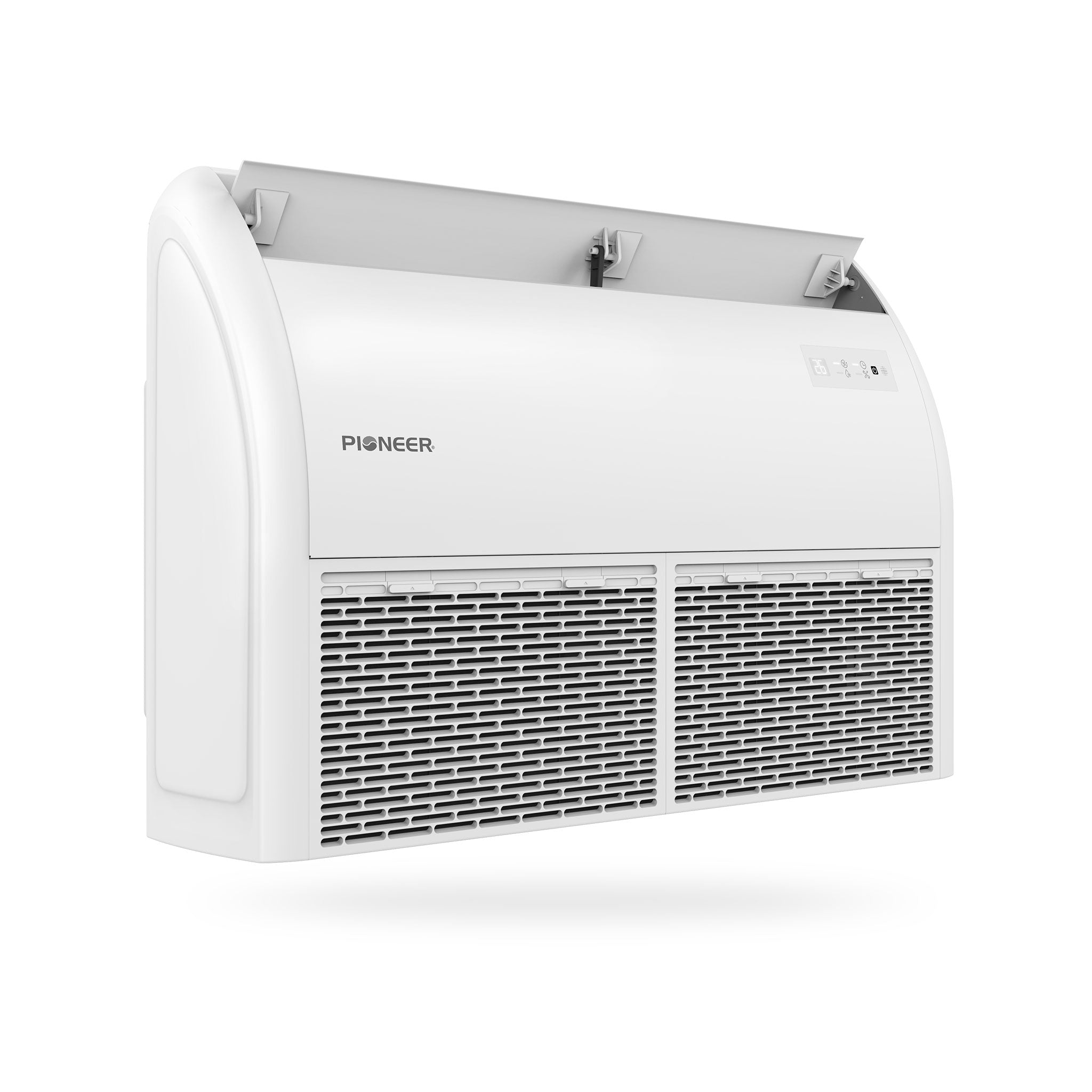

• Indoor Unit
  • Part Number: UT024GLSILSFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
  • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
  • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
  • Net / Gross Weight: 57.3 / 68.3 lbs.

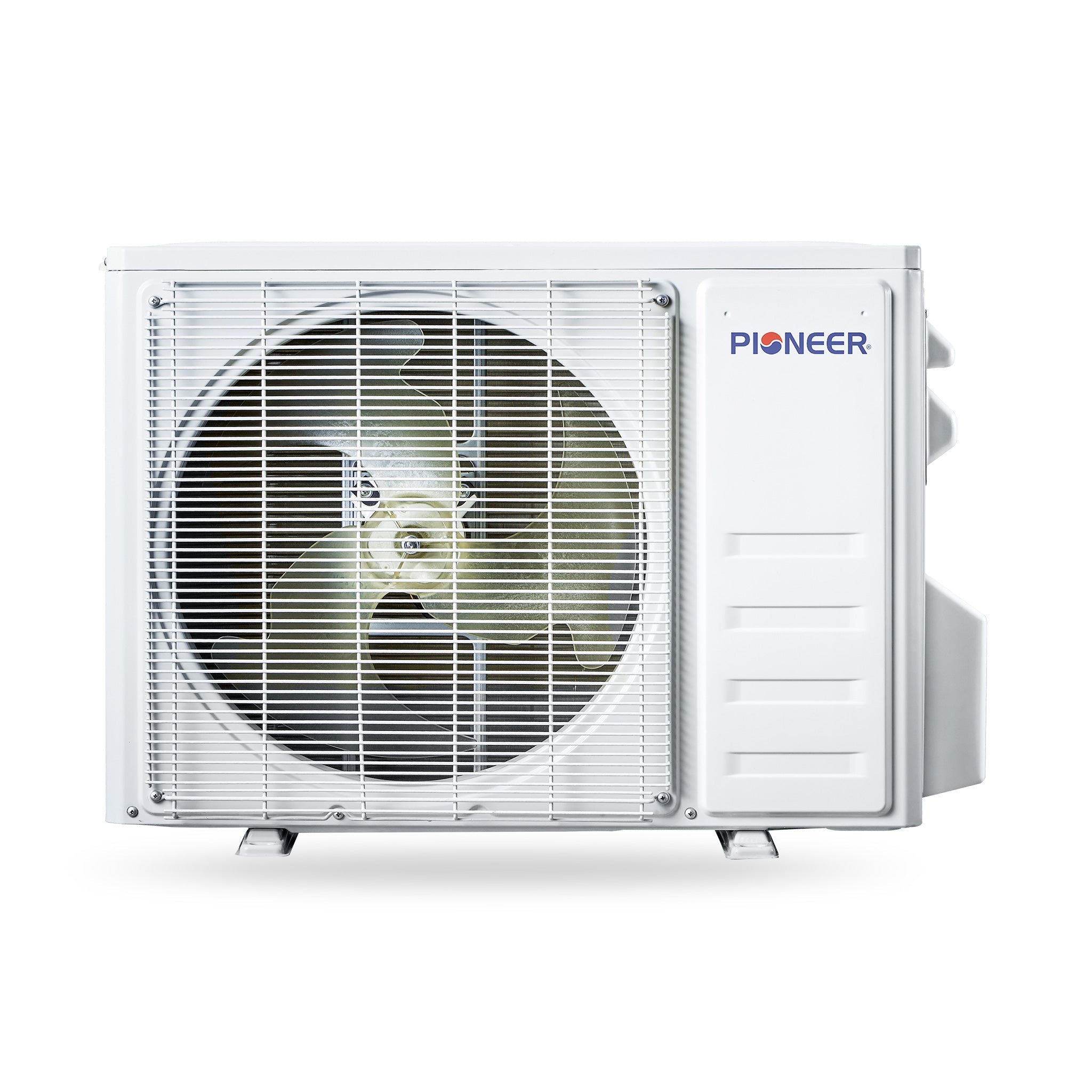

• Outdoor Unit
  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart
